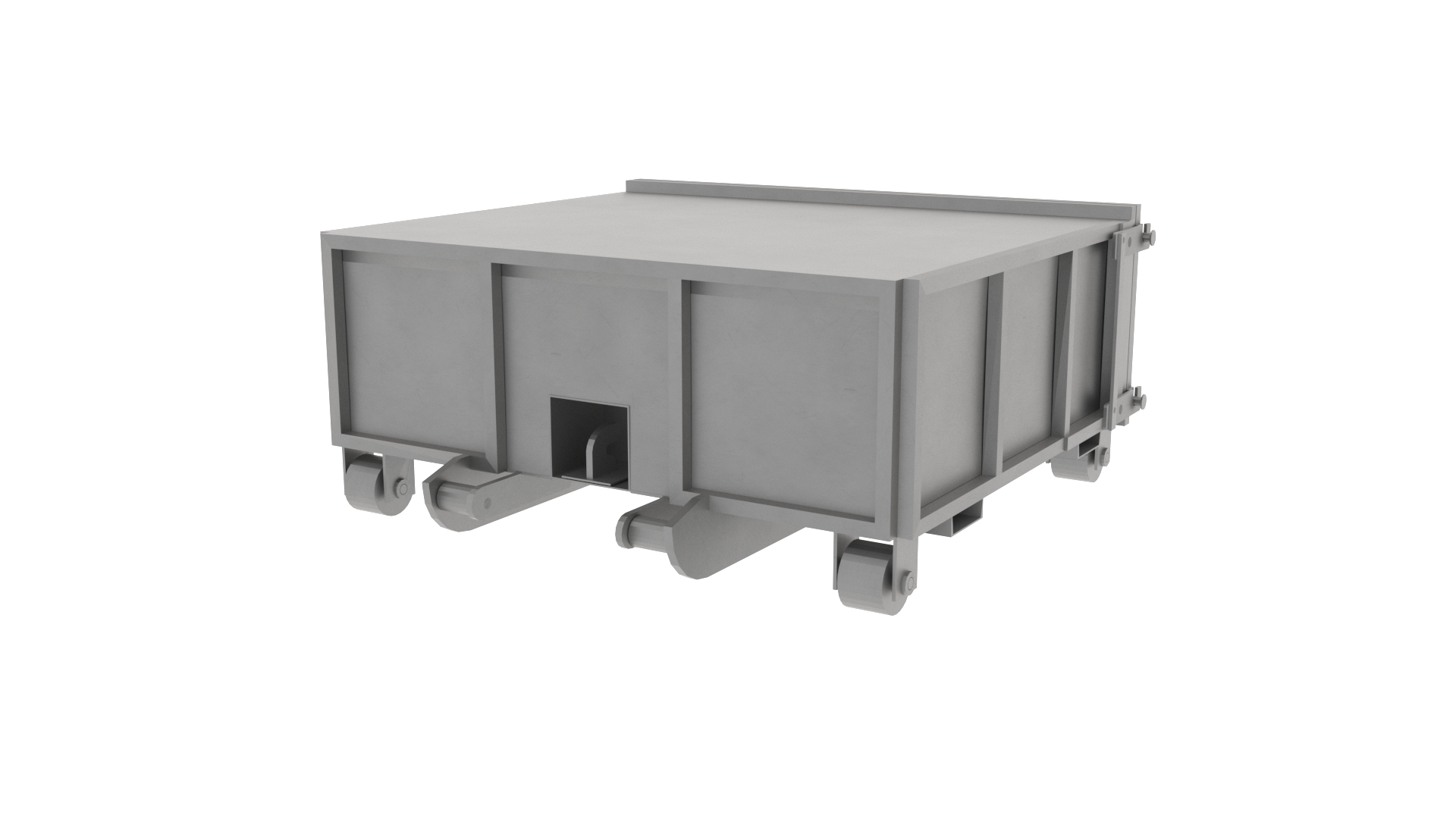

Custom miscellaneous steel detailing requires more than just accurate drawings—it demands flexibility, deep coordination, and a willingness to solve complex integration challenges. This project tested all three as we worked on a custom dust collection bin that brought together multiple bought-out components into a single, functional system.
The Challenge:
At first glance, this project may have seemed simple. However, it involved the integration of several vendor-supplied items, each with unique dimensions, tolerances, and interface points. The real complexity lay in ensuring that these components would align perfectly—both in fit and function.
As a result, we had to perform detailed modeling with no room for error. Furthermore, we had to account for field conditions and fabrication constraints early in the process to avoid clashes later on.
Our Expertise:
We stepped beyond our usual detailing scope and took on new coordination responsibilities. From aligning with outside vendors to resolving tight clearances in the model, our team embraced the challenge with confidence.
By applying advanced modeling techniques and rigorous internal reviews, we ensured that all components came together in a cohesive and constructible assembly. This experience sharpened our problem-solving abilities and highlighted our adaptability in nonstandard detailing work.
The Result:
Completing this custom miscellaneous steel detailing project proved that our team thrives under unconventional conditions. The custom dust collection bin required us to go beyond traditional fabrication packages—and we delivered a fully coordinated, ready-to-build model with precise drawings to match.
Projects like these reinforce our commitment to continuous improvement. Whether it’s platforms, bins, stairs, or support steel, we’re always ready to push boundaries and deliver clean, constructible results—no matter how specific the need.
Have a custom miscellaneous steel detailing project that doesn’t fit the mold?
ESD Solutions is here to make it work—accurately, efficiently, and on schedule.
