Steel Detailing Deliverables for Fabrication and Erection
We provide the coordinated drawings, model data, reports, and fabrication files needed to move a steel project from approval through production and erection.
The package can include shop drawings, erection drawings, 3D models, CNC files, material reports, and other outputs prepared for your shop standards, software, and equipment.
Deliverables Available for Your Project
Below is the full range of drawings, model files, machine-ready data, and reports we can provide for fabrication and erection.
The required files are confirmed before modeling begins. Package depends on the project scope, submission stage, client standards, shop software & equipment.

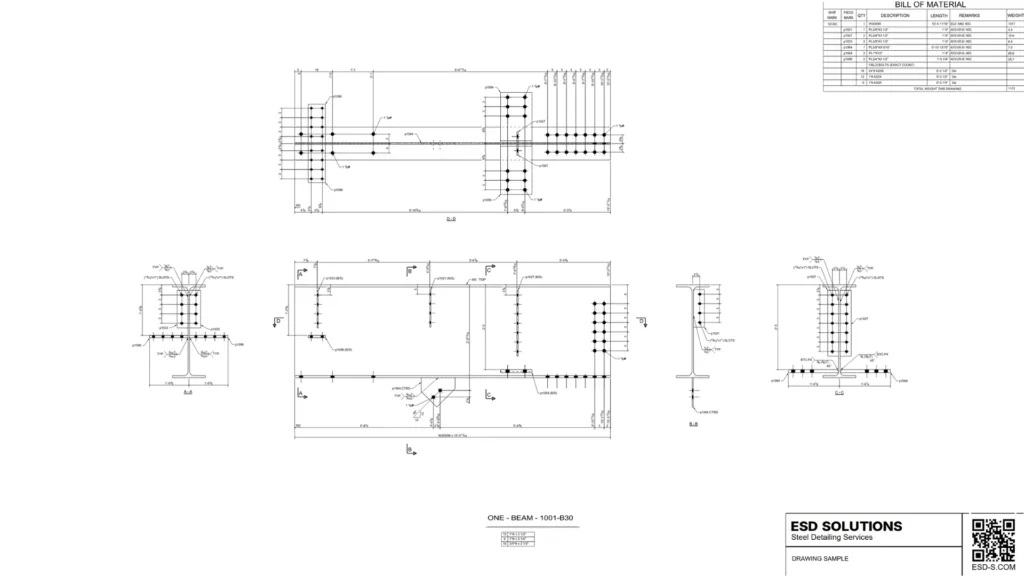

Shop Drawings
PDF and DWG

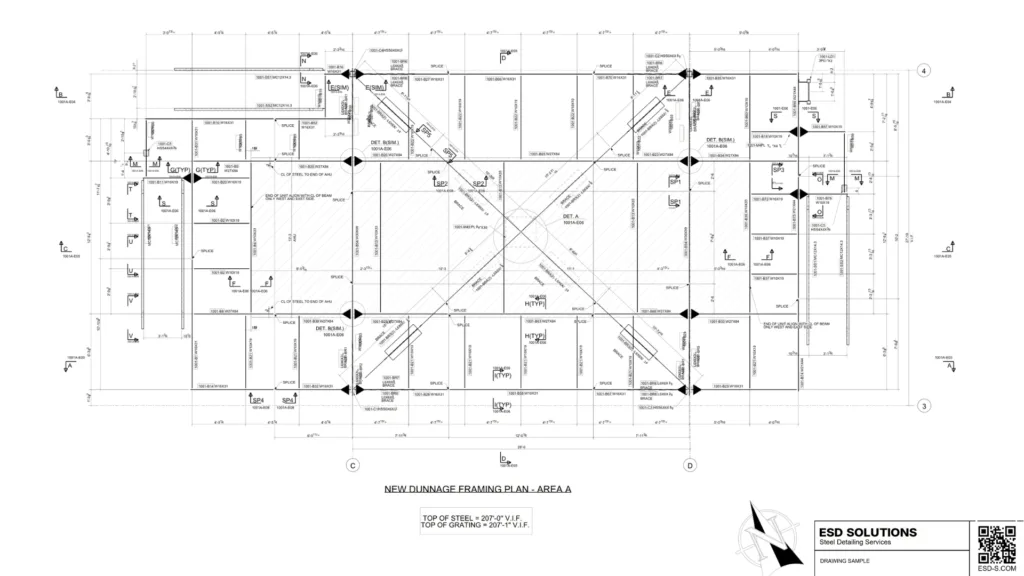

Erection Drawings
PDF and DWG

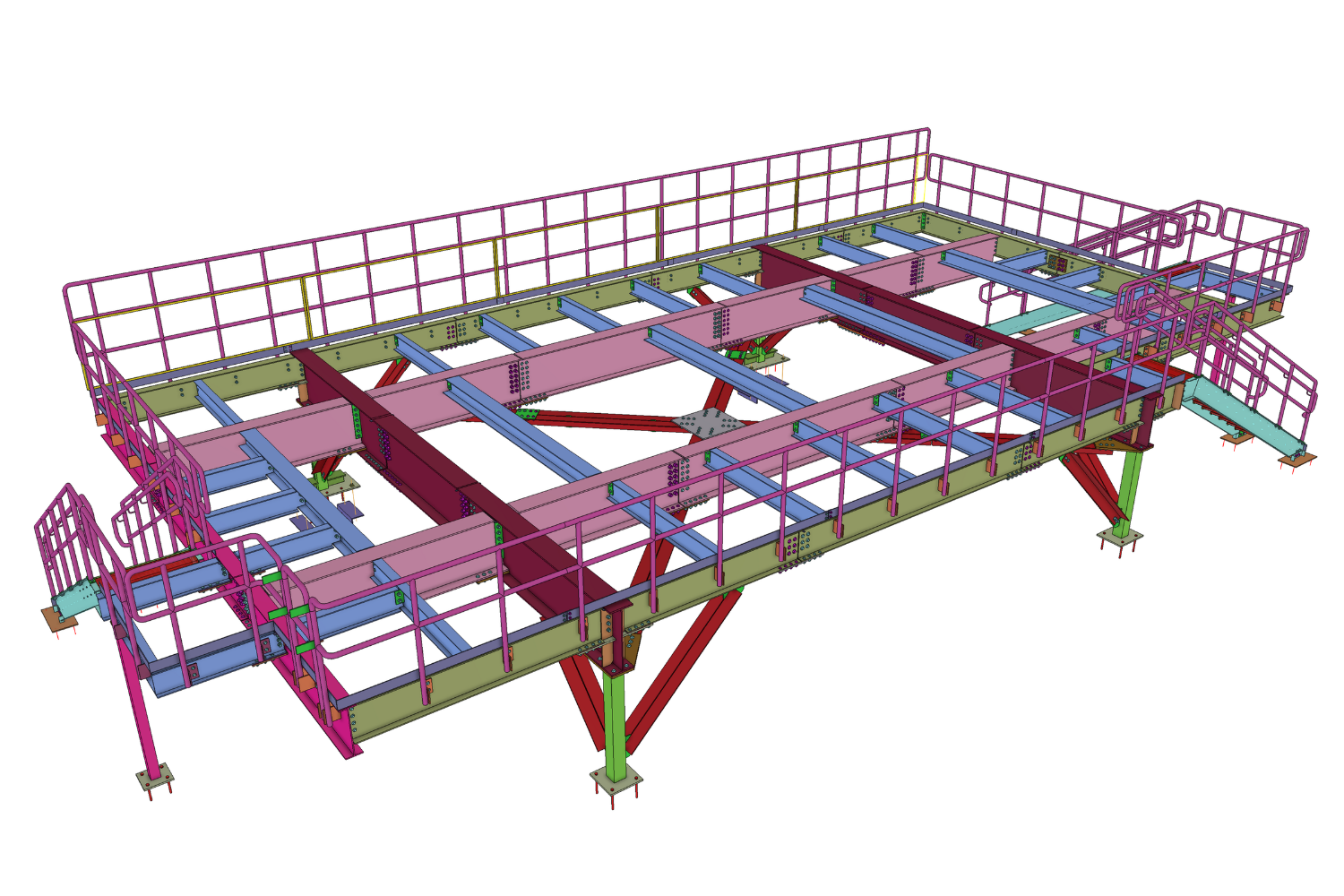

Model
IFC and DWG
(And other 3D format per request)
NC Files
DSTV NC1 for all pieces
DXF Files
For plates with tooling layers
Material List
PDF and Excel formats
Assembly List
PDF and Excel formats

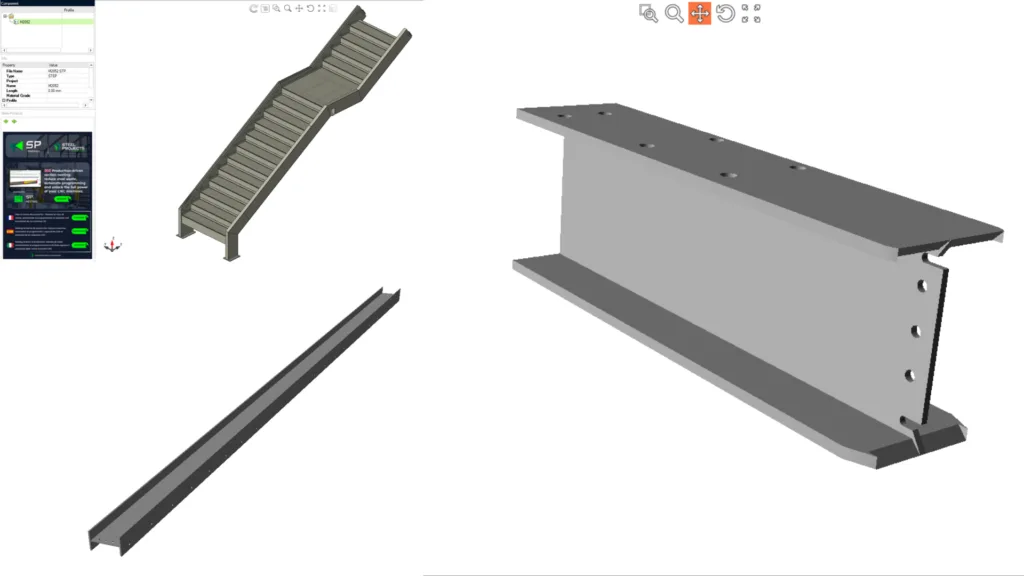

STP Files
For 3D model exchange and coordination
MIS / KSS Files
For STRUMIS or other MIS software
Bolt List
PDF and Excel

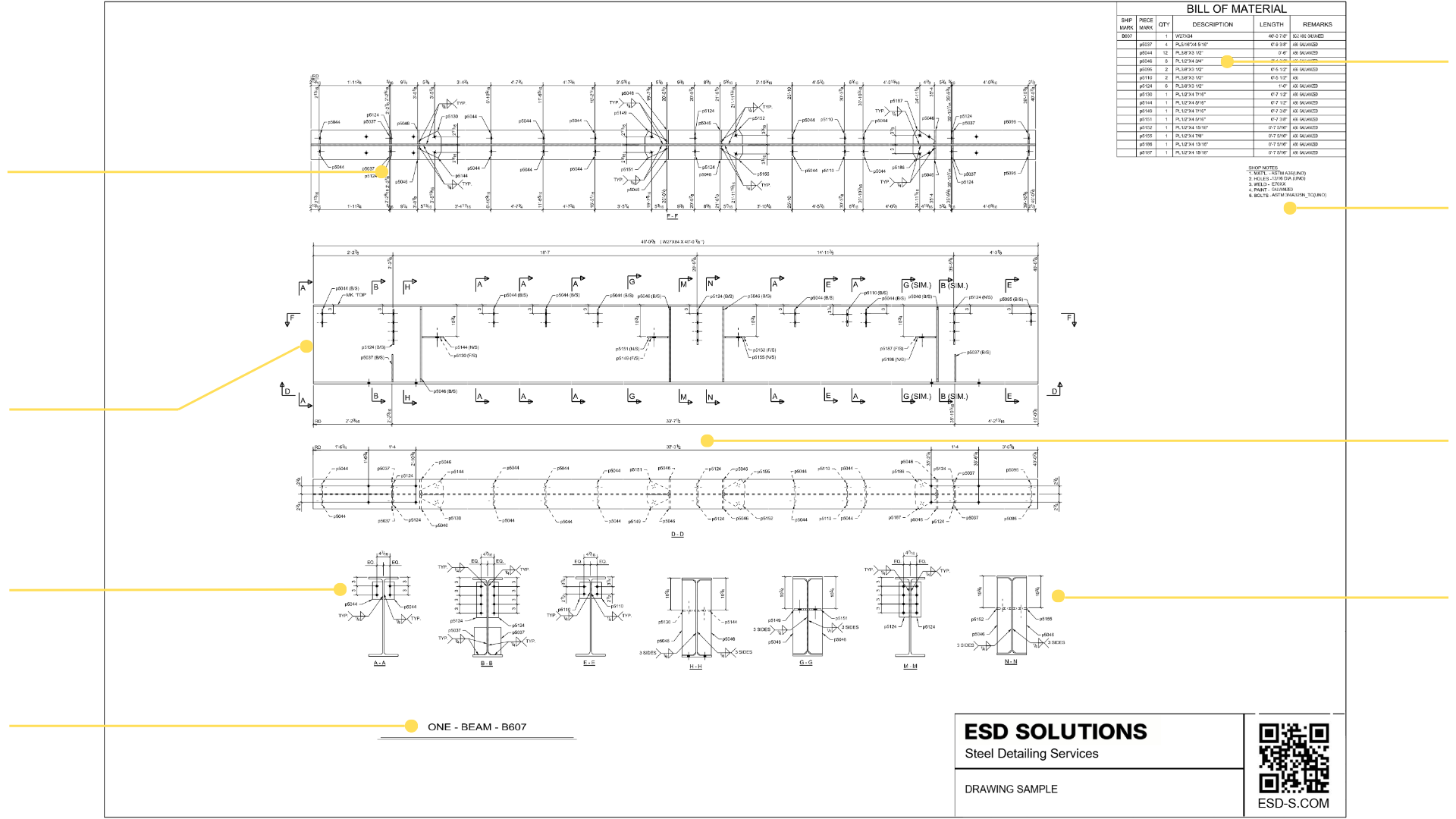

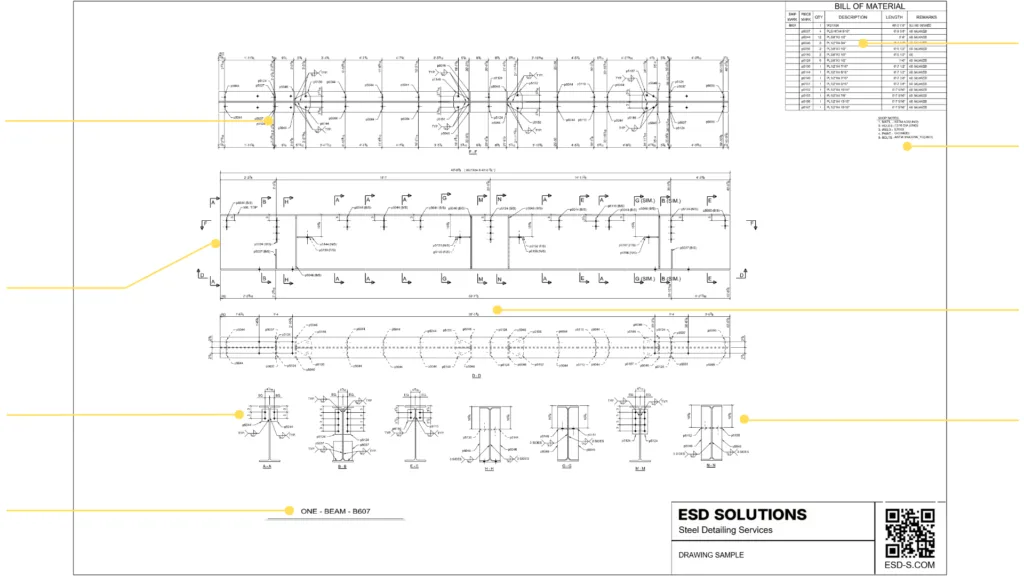

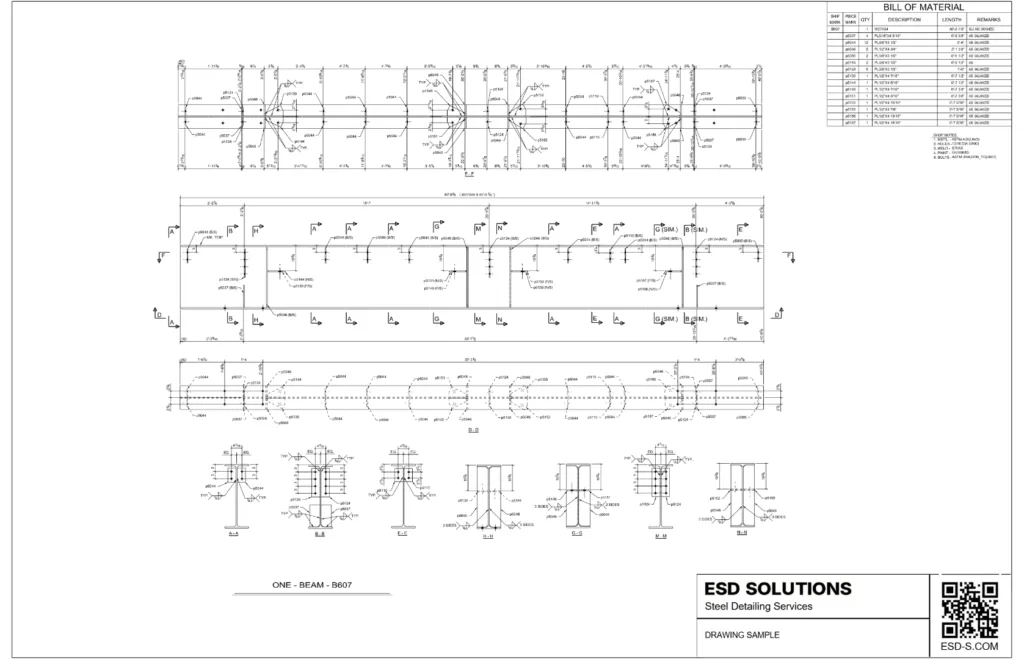

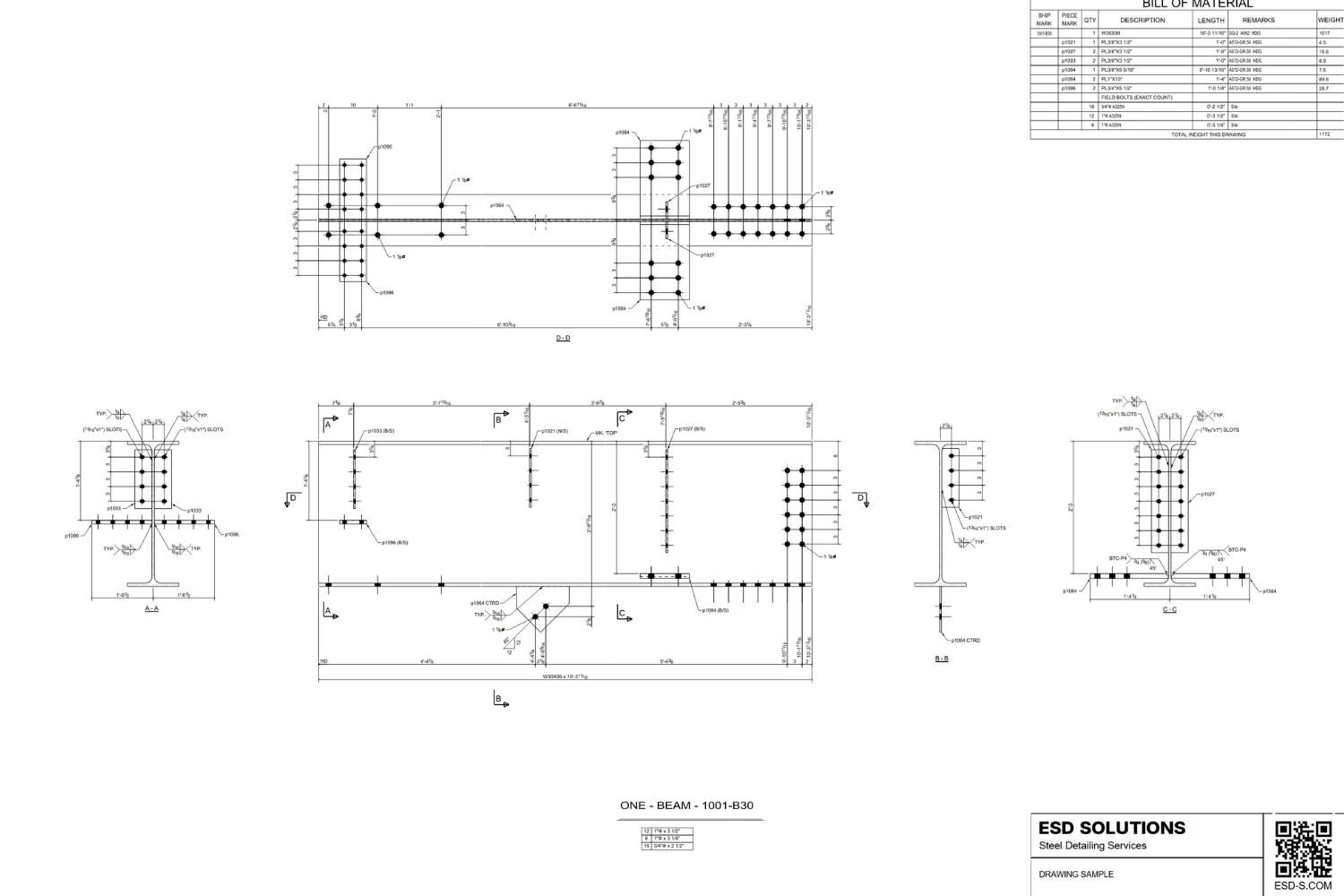

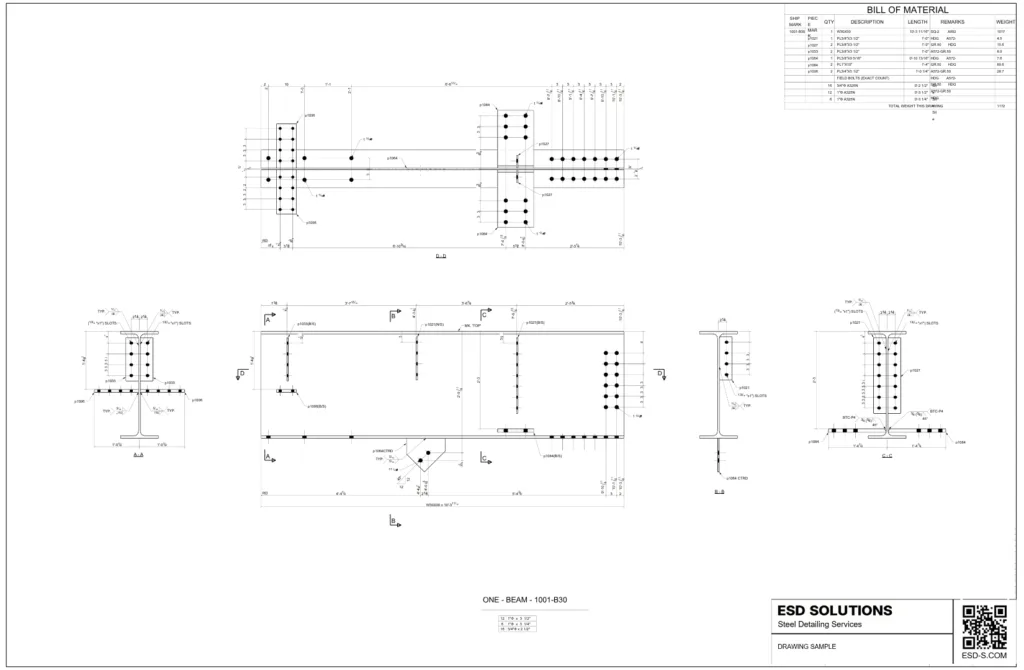

Shop Drawings: Checked and Ready for Shop Use
Shop drawings are prepared from the project model and checked for the information required to fabricate and assemble the member.
The drawing review includes:
- Weld sizes, lengths, symbols, and locations
- Copes, notches, cuts, and member end prep
- Hole sizes, edge distances, gages, and bolt spacing
- Member and part identification
- Standard grades, bolt types, finishes and fabrication notes
- Overall and parts locating dimensions
- Required sections, details, and enlarged views
- Connection material sizes
Weld sizes, lengths, symbols, and locations
Copes, notches, cuts, and member end prep
Hole sizes, edge distances, gages, and bolt spacing
Member and part identification
Connection material sizes
Standard grades, bolt types, finishes and fabrication notes
Overall and parts locating dimensions
Required sections, details, and enlarged views
Explore Deliverables by Type
Explore the drawing packages, model files, fabrication data, and reports available for each stage of your shop and field workflow.
Shop Drawings
Steel shop drawings and fabrication drawings for review and shop use.

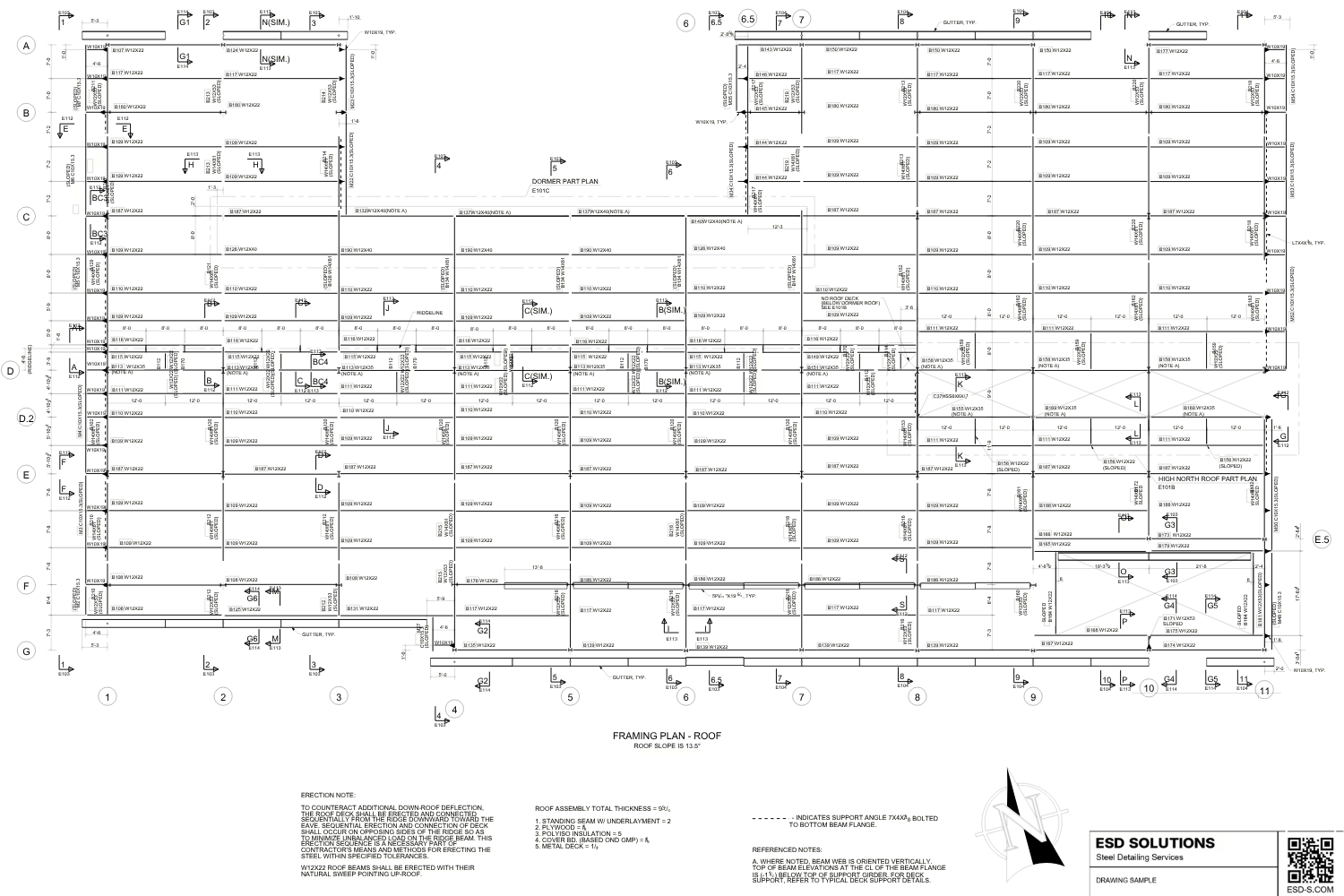

Erection Drawings & Plans
Drawings and plans for field use, for approval, coordination and field use.
CNC & BIM Outputs
NC1, DSTV, DXF, IFC, and related digital outputs for fabrication and coordination.

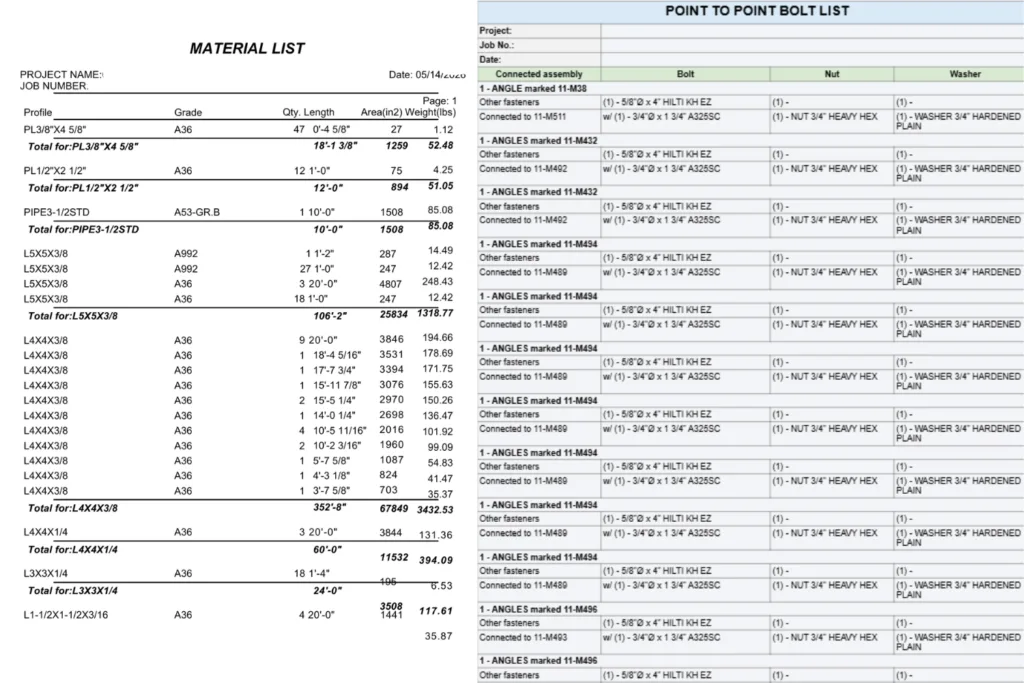

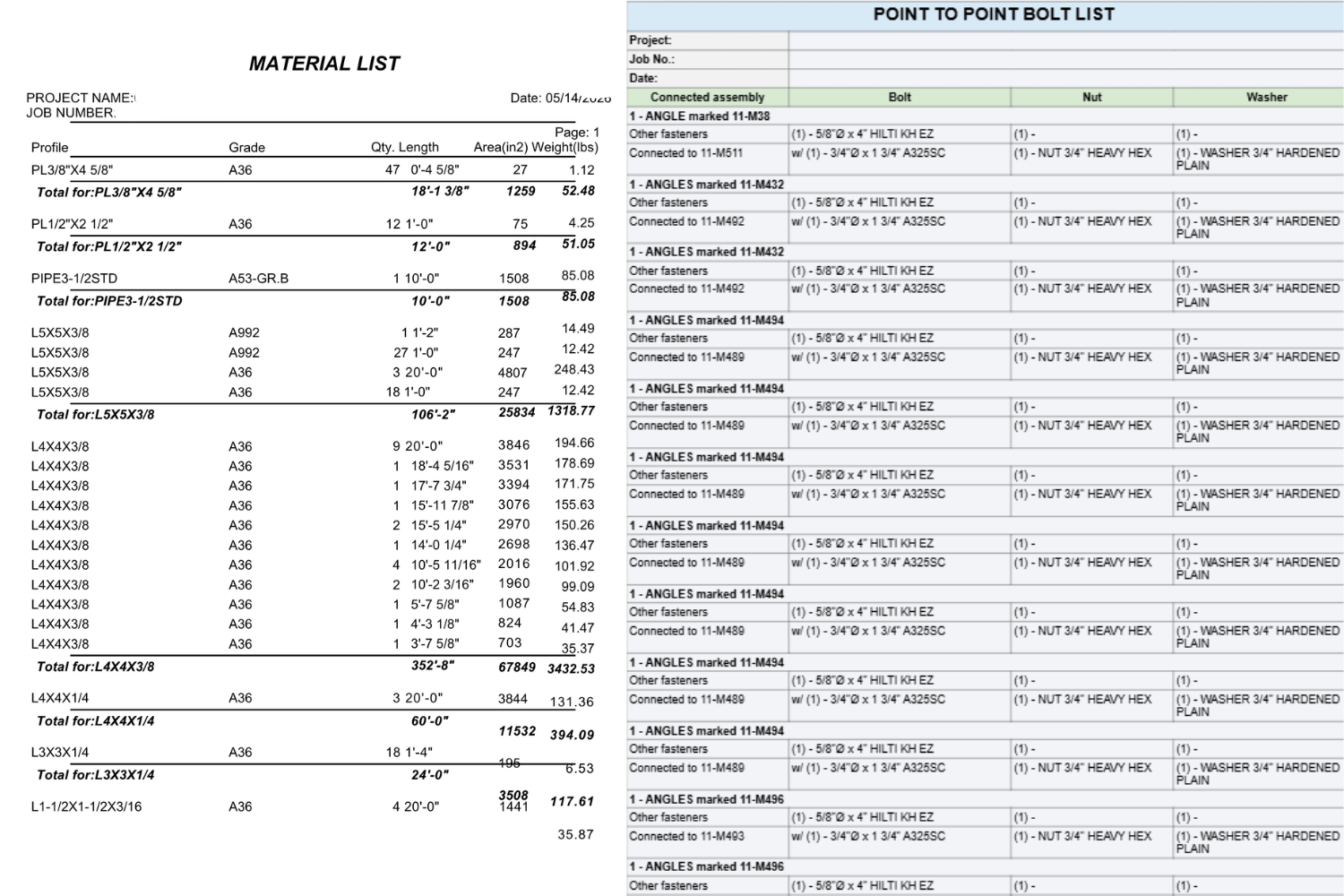

BOM, Material & Bolt Lists
Material takeoff reports, bill of materials, and bolt lists for purchasing and production tracking.
Shop & Fabrication Drawings
Steel shop drawings and fabrication drawings for review, approval, and shop use.
Erection Drawings & Plans
Drawings and plans for field use, piece orientation, framing layout, and installation.
CNC & BIM Outputs
NC1, DSTV, DXF, IFC, and related digital outputs for fabrication and coordination.
BOM, MTO & Bolt Lists
Material takeoff reports, bill of materials, and bolt lists for planning and shop control.
Keep Related Deliverables in Sync

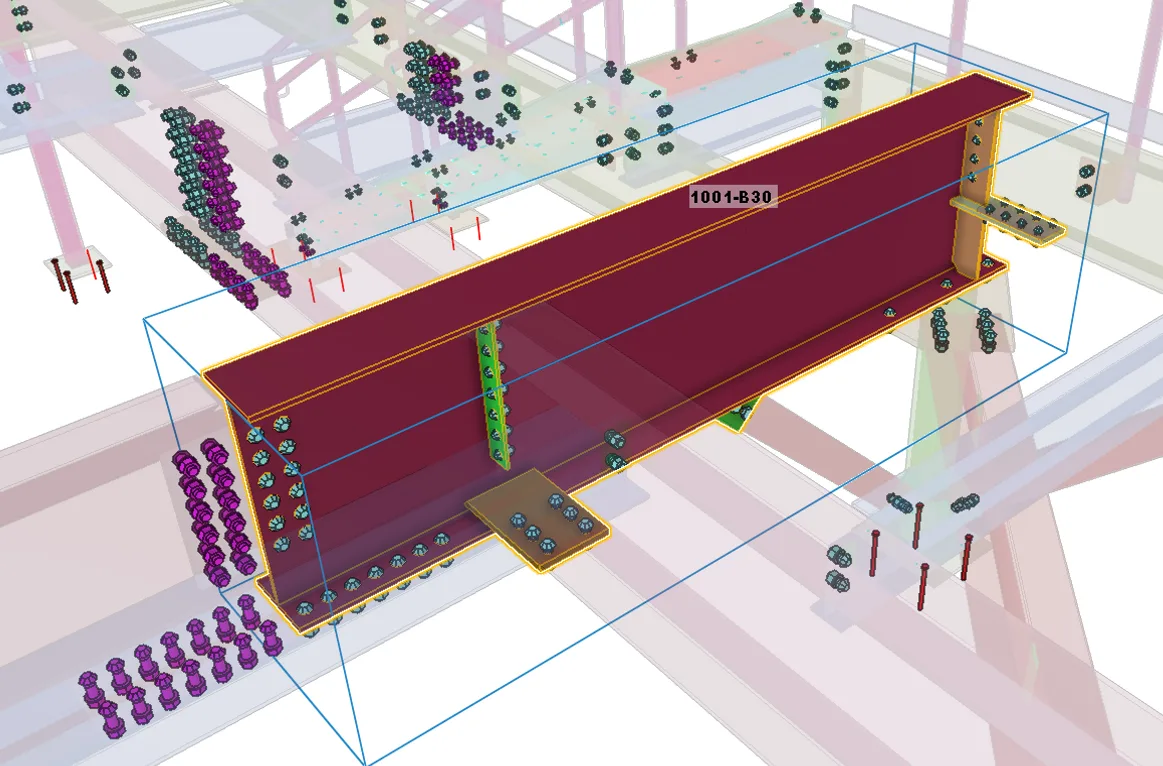

A fabrication package may contain several different file types, but they should not be treated as separate pieces of information. We use the Model as the working source for the project and prepare the required outputs from the same coordinated steel information. When a revision affects the steel, we update the model first and then we identify which project outputs are affected and update those included in the release.
Drawing
Model
List / Fabrication Data
Keep Related Deliverables in Sync
A fabrication package may contain several different file types, but they should not be treated as separate pieces of information. We use the Model as the working source for the project and prepare the required outputs from the same coordinated steel information. When a revision affects the steel, we update the model first and then we identify which project outputs are affected and update those included in the release.
Drawing
Model
List / Export
Need Something That Isn’t Listed Here?
Send us the project, an example of the required file or report, and any software or shop requirements you have. We’ll review the workflow and determine how the output can be prepared.
Beyond standard outputs, we can work with different conversion tools and configure or program custom reports to provide the specific fields, quantities, and project information your team needs.
