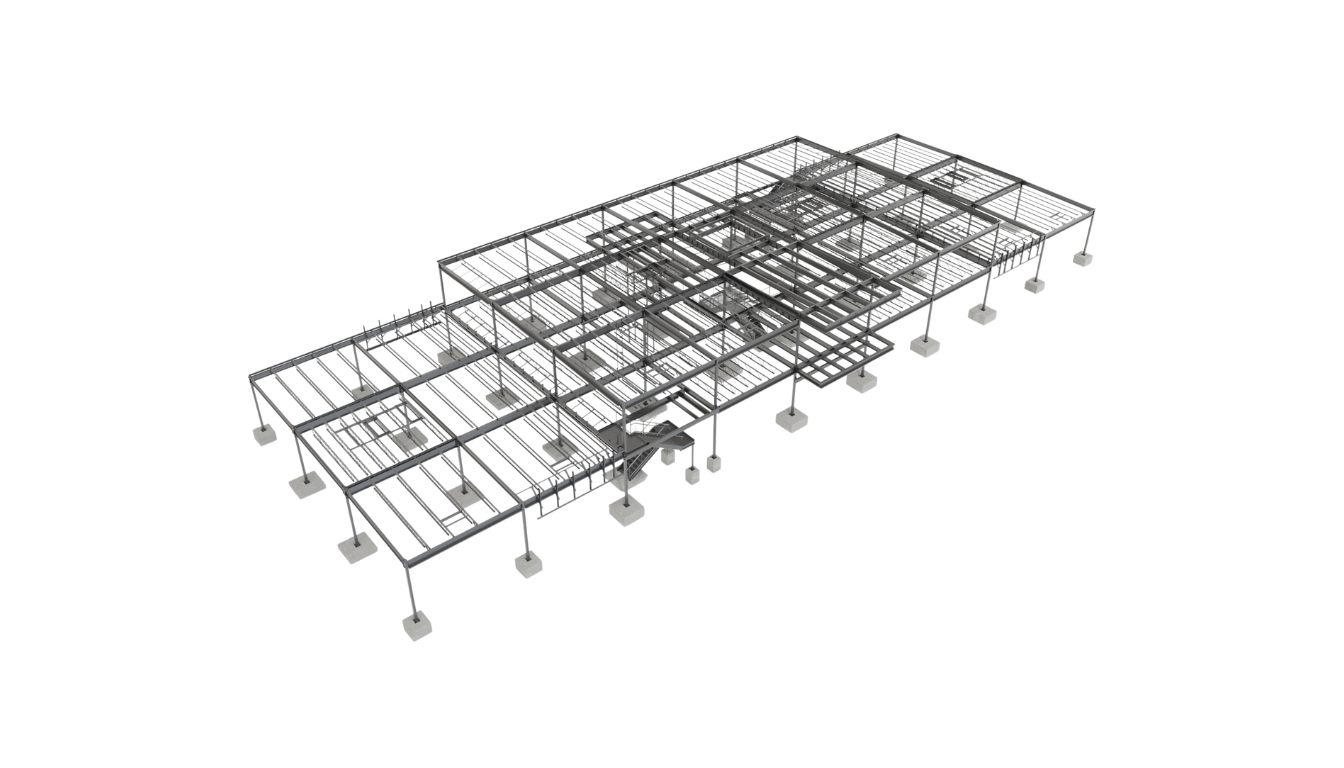

This was a clear case of structural steel detailing under pressure — a project that may look straightforward at first glance but brought a unique set of challenges during the detailing phase. Complex features, including bidirectional moment connections, façade support steel, and cantilevered balconies, made this an intricate task from the start. Combined with an extremely tight timeline, it demanded speed, precision, and flawless coordination.
The Challenge
The biggest challenge wasn’t just the structural complexity — it was the extremely tight release deadline. With steel fabrication already on a compressed schedule, our client needed fast results. However, delays from the design team left us with just a few days to revise the model and complete the piece detailing. To make matters more intense, the client rejected our proposed sequencing plan and demanded a “one-shot” delivery. This significantly increased the stakes and the pressure.
Our Approach
Even under intense time constraints, we relied on advanced tools and proven workflows. Using custom automation features in our detailing software — including auto-connections and drawing cloning — we boosted speed without sacrificing accuracy. These tools enabled faster model updates, streamlined piece detail generation, and reduced the risk of human error. Still, the final push required a 36-hour nonstop effort from our team to meet the client’s deadline.
The Result
Thanks to our experience with structural steel detailing under pressure, we delivered the full package on time. All drawings were double-checked and ready for fabrication — no compromises. The project included complex wraparound moment plates, cantilevered balconies, and façade steel support, all detailed to high standards. The successful delivery not only met the schedule but also reinforced our reputation for speed, precision, and reliability in high-stakes environments.
